It senses the load and adjusts to it.
Smart Savings Typically 8 to 12 percent of the bill, all in.
Correction at the main takes reactive current out of the transformer, the service conductors and the meter. Heat and losses fall with the square of that current, and billed demand is metered as its own line inside the figure.
Heavy-duty cells built for a twenty-five-year life. The controller
calls the stages that hold 0.98 as the load moves, and rotates the cell groups, an hour on 1 2 3 4, then 5 6 7 8, then 1 3 5 7,
so wear spreads across every cell. A transfer switch contact
releases the bank on generator.
Five stages. One enclosure. One disconnect.
Stage What it is What it sets
01 Correction Capacitor bank on heavy-duty cells built for a twenty-five-year life, switched by AutoSensing or held as a fixed stage
Reactive current supplied at the gear
02 Filter reactors Detuned, applied as the audit requires, sized to the service and tuned to impact the dominant harmonic orders
Bank clear of resonance, a share of the fifth drawn in
03 Return path Insulated neutral bar, 4/0 neutral bundled with 4/0 ground back to the main 137 V per foot, against 583 run apart
04 Protection 300 kA per phase, 7 redundant paths per phase, each fused with its own thermal disconnect 1,122 V delivered at the bus bar
05 Measurement Revenue-grade Class 0.2 meter in the door, sensors at the main The record of every value, and every event

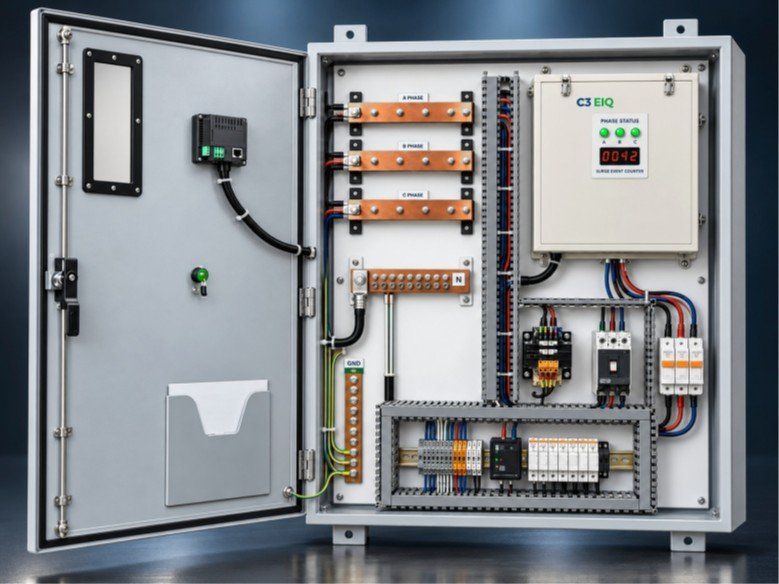

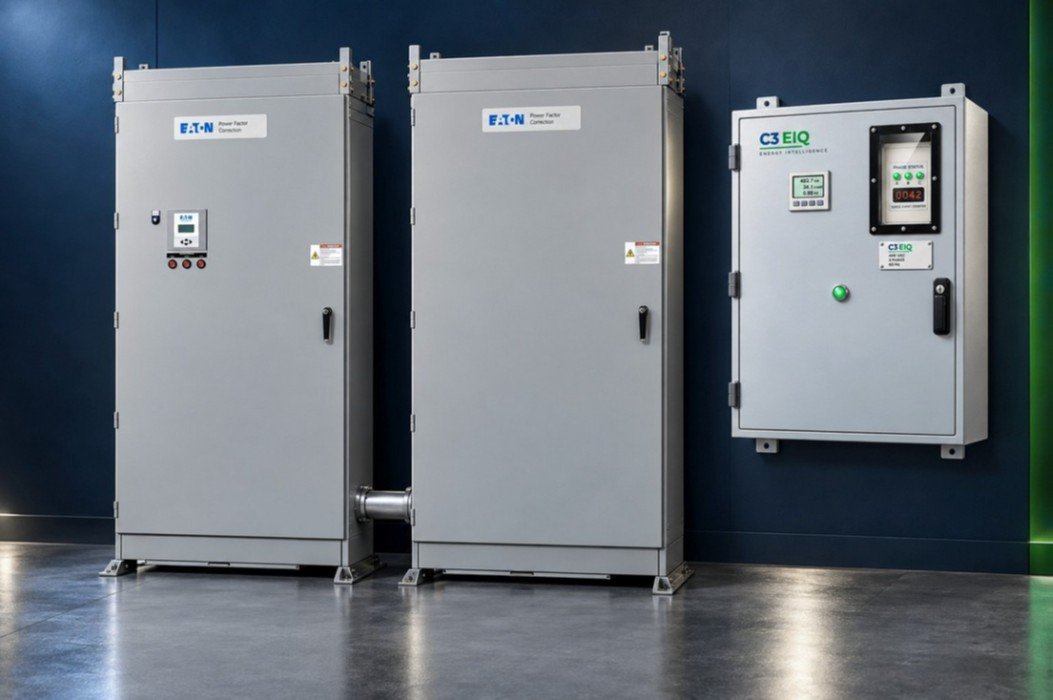

C3 EIQ energy conditioner
Auto Sensing Energy
Management
Power savings 8-12 %
“It senses the load
and adjusts to it.”
